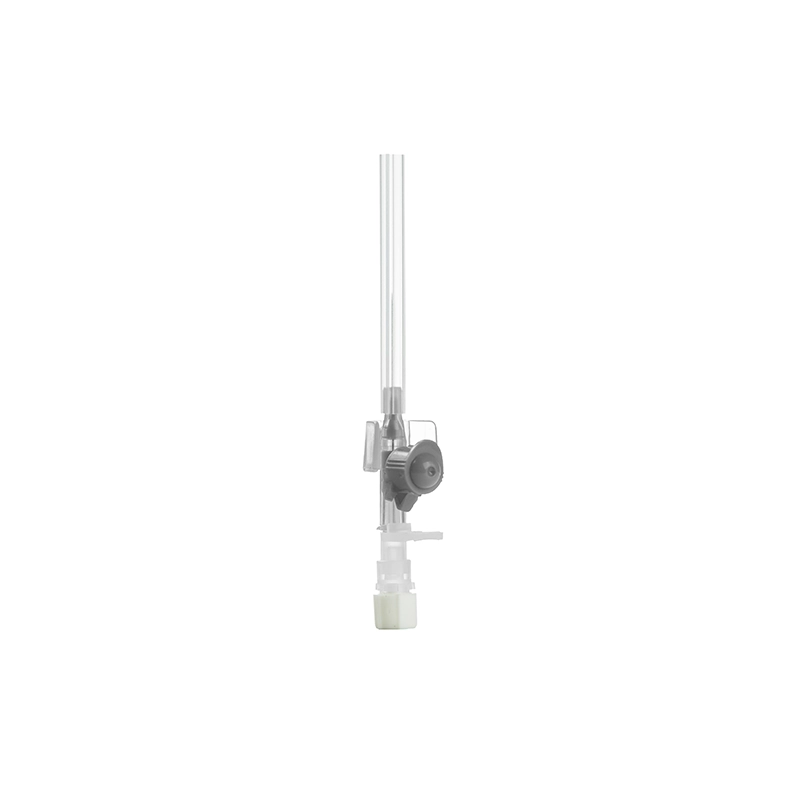

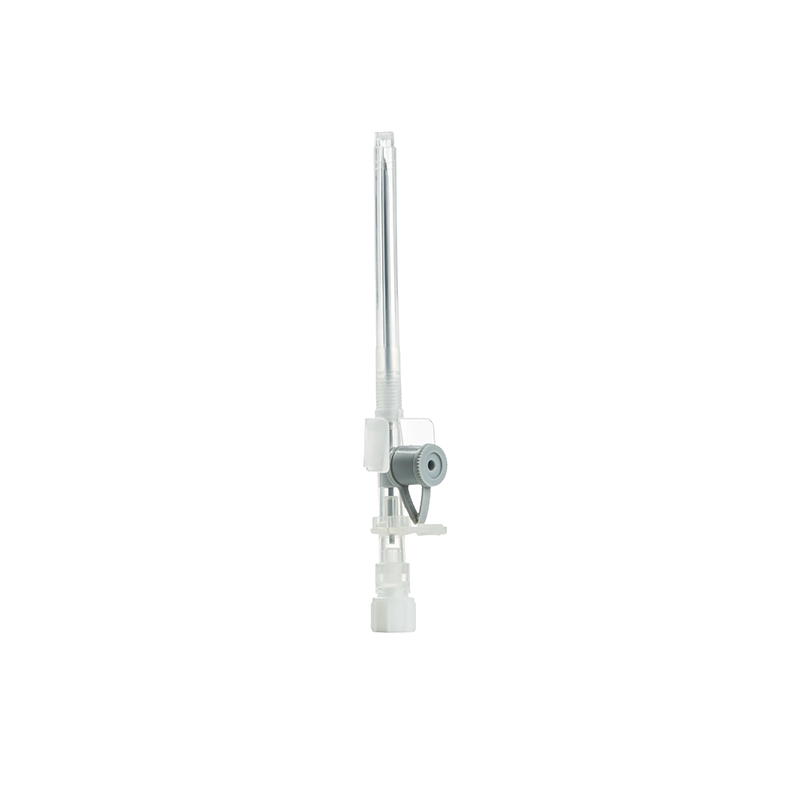

Gray 16G IV Cannula
The gray 16G IV cannula is a relatively large-bore peripheral intravenous cannula used to establish venous access and infuse fluids or blood products. The gauge number is inversely related to the cannula’s diameter, so a 16G cannula is thicker than sizes such as 18G, 20G and 22G and allows fluids to be delivered at a faster rate.
| Size / Gauge | 16G |
| Color | Gray |
| Needle Manufacturer | Nipro, Japan |
| Latex Status | Latex-free |
| Packaging Type | Blister Packaging |
| Quantity per Pack | 100 pieces |
| Quantity per Carton | Carton of 1,000 (10 packs) |
| Catheter Cannula Material | FEP |
| Body Material | PVC |
| Needle Material | Stainless steel |
| Needle Guard | Close Cap |
| Sterilization Method | Ethylene Oxide (EO) |
| Needle Inner Diameter | 0.90 mm |
| Needle Outer Diameter | 1.25 mm |
| Distance from Needle Tip to Catheter Tip | 45 mm |
| Needle Strength | 20N |
| Cannula Resistance to Repeated Bending | 20N |
| Catheter Length | 45 mm |
| Flow Rate | 180 ml/min |
| Fluid Replacement Capability | Rapid |
| Clinical Use | Trauma and major surgery |
Uses of the Gray 16G IV Cannula
This size is usually used when high-flow venous access is needed, including:
- Rapid infusion of large volumes of fluid
- Transfusion of blood and blood products
- Some surgeries and emergency procedures
- Situations requiring large-bore venous access
The right IV cannula size should be chosen based on the patient’s condition, vein diameter, the type of fluid or drug being infused, and the judgment of the physician or medical staff. Because of its large diameter, the 16G cannula is not suitable for all patients and treatments.
Buy the Gray 16G IV Cannula

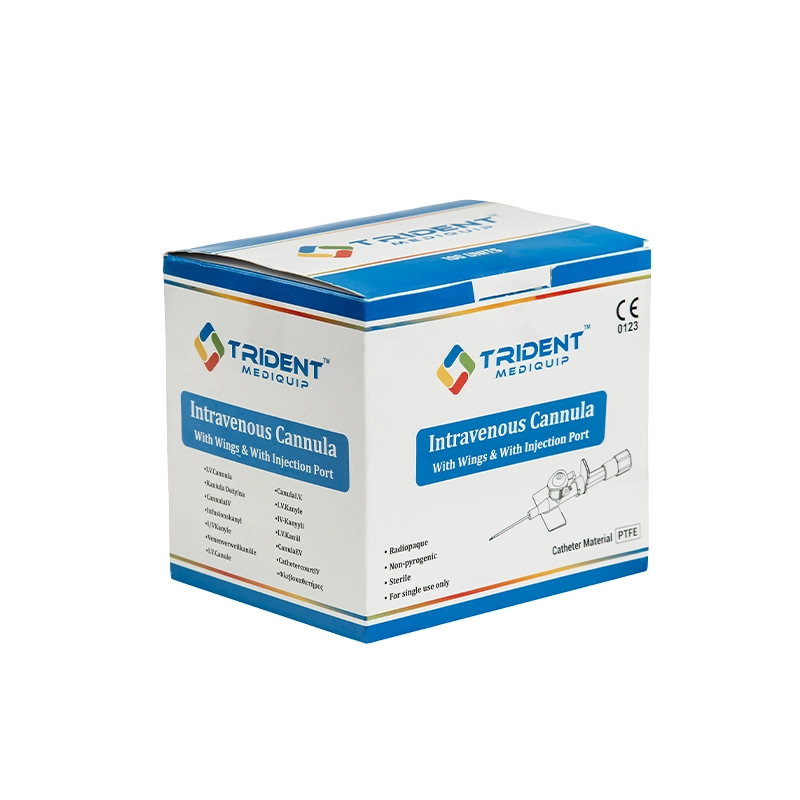

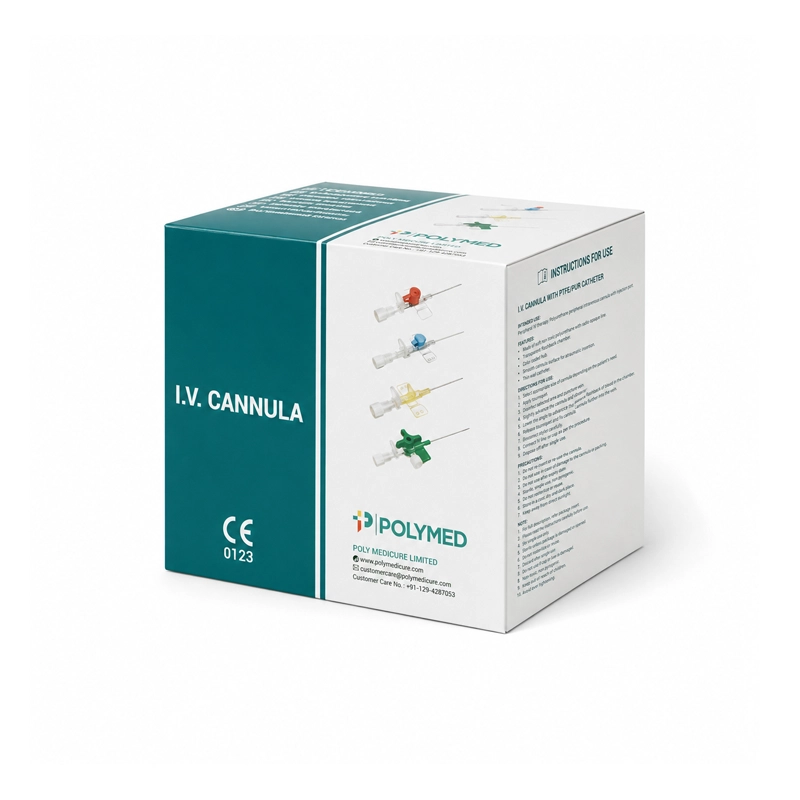

The gray 16G IV cannula is available from the PolyMed and Trident brands. The brand available may vary depending on stock at the time of order, so before buying check the brand name, technical specifications, expiry date, packaging condition and product documents.
For prices, available brands and ordering terms for the gray 16G IV cannula, contact the Bonyan Tajar sales experts.
